Essential Stages Of Optical Lens Design

113 0

Designing an optical lens requires a meticulous process that combines science, mathematics, and engineering to meet specific performance goals. Lenses are crucial in controlling and manipulating light, whether used in cameras, telescopes, microscopes, or medical devices. This article outlines the essential stages of optical lens design, focusing on ensuring precision and achieving the desired optical performance. We’ll also touch upon materials like custom optical lenses, which is essential in high-end optics.

Defining the Requirements and Specifications

The first step in lens design is clearly identifying the project’s requirements. This includes determining the purpose of the lens, the type of light it will interact with, and the desired performance. Designers consider several parameters, such as:

  • The wavelength of light the lens will handle (visible, infrared, or ultraviolet).
  • Field of view, magnification, and resolution needs.
  • Environmental conditions such as temperature or exposure to chemicals.

For instance, lenses for microscopes require high resolution, while lenses for cameras may need to balance resolution and field of view. At this stage, the project team also decides on lens shape—whether convex, concave, or aspheric—and the materials to be used. Materials like glass, plastic, or optical sapphire are chosen based on performance requirements. Optical sapphire is preferred in some applications due to its exceptional hardness, high transmission range, and scratch resistance.

Preliminary Lens Design and Simulation

The next step is to build a preliminary design once the requirements are defined. Designers use software tools like Zemax, Code V, or OSLO to model the lens geometry and simulate its performance. These tools help predict how the lens will interact with light, identifying potential aberrations, reflections, or distortions.

Key aspects of the preliminary design include:

  • Surface curvature calculations to control how light rays converge or diverge.
  • Lens thickness and shape to minimize aberrations.
  • Material properties, including the refractive index, determine how light bends through the material.

Simulations also test the lens for chromatic aberration—where different wavelengths of light focus at slightly different points—and other optical distortions.

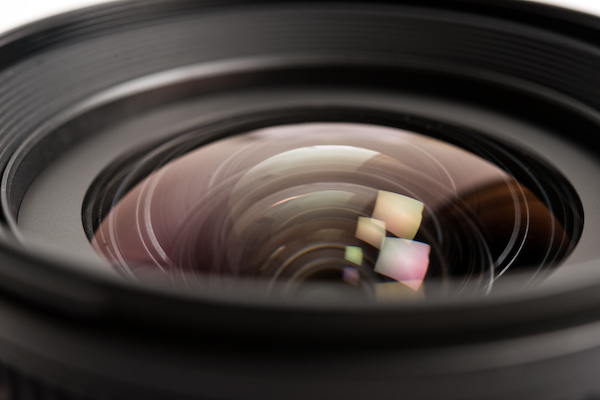

Optical-Lens-Design

Optimization of the Lens Design

Optimization is an essential stage in the design process, where the lens model is fine-tuned to achieve the best possible performance. The designer adjusts the parameters, such as radii of curvature, lens thickness, and spacing between elements, to minimize aberrations and achieve the desired focal length.

Modern design software automates much of the optimization process, evaluating thousands of iterations to identify the optimal configuration. The goal is to find the right balance between performance, cost, and manufacturability. For instance, a multi-element lens system may deliver exceptional performance but be too complex and expensive to manufacture.

Selection of Lens Material

The choice of material is critical in lens design as it directly impacts performance and durability. Factors considered include:

  • Refractive index: Determines how much light bends through the lens.
  • Transmission range: Specifies the wavelengths that can pass through the material.
  • Durability: The material’s resistance to scratches, chemicals, and temperature changes.

Custom large optical lenses, often used in high-precision optics, offers excellent scratch resistance and performs well across a wide spectrum, from ultraviolet to infrared. Its hardness makes it ideal for durable applications, such as defense equipment or scientific instruments exposed to harsh environments. However, its high cost limits its use to specialized applications.

Prototyping and Testing

Once the design is optimized, lens prototypes are manufactured for testing. Prototyping allows designers to evaluate real-world performance and identify discrepancies between the simulation and actual results. Several optical parameters are tested, including:

  • Focal length accuracy
  • Resolution and clarity
  • Aberration levels

Testing is conducted under conditions similar to the intended application to ensure reliable performance. If the prototype reveals flaws, the design is refined further. This iterative process continues until the lens meets all specifications.

Manufacturing and Quality Control

When the design is finalized, the lens goes into production. Manufacturing involves precision techniques such as grinding, polishing, and coating. Coatings are applied to minimize reflections, improve light transmission, and protect the lens from environmental damage.

Quality control is essential to ensure the lens meets industry standards. This stage involves rigorous inspection processes, including:

  • Interferometry to measure surface accuracy.
  • Spectrophotometry to verify light transmission properties.
  • Mechanical testing to ensure the lens can withstand environmental stresses.

Advanced lenses, such as those made from optical sapphire, require careful handling during manufacturing due to the hardness of the material. Specialized tools and methods are used to shape and polish sapphire lenses without compromising precision.

Final Assembly and Integration

The final stage in the lens design process involves integrating the lens into the end product. The lens system must align perfectly with other components to deliver optimal performance, whether it’s a camera, microscope, or telescope. This stage includes:

  • Alignment of optical elements to ensure proper focus and clarity.
  • Calibration to match the lens system’s performance with the rest of the device.
  • Packaging and protection to prevent damage during transportation and use.

Conclusion

Designing an optical lens is a complex, multi-stage process that requires a deep understanding of optics, materials, and engineering principles. From defining specifications to prototyping, optimization, and final assembly, each step ensures that the lens performs as expected. The selection of materials like optical sapphire adds another layer of precision and durability to the design, making these lenses suitable for demanding applications. With advancements in software and manufacturing technologies, the lens design process continues to evolve, enabling designers to create lenses that push the boundaries of optical performance.
